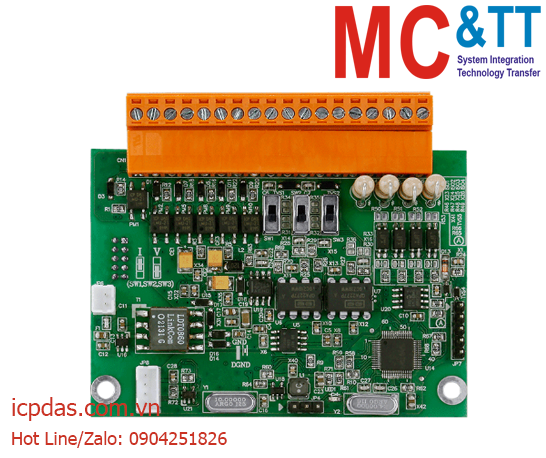

The XV315 is a 3-channels RTD input, 3-channels analog output, 4-channels digital input modules that are used for measuring temperatures using RTD sensors and each channel can be connected to a different type of sensor.
It is specifically designed for long-distance RTD measurement, and features automatic compensation for three wire RTD,meaning that accurate measurements can be obtained regardless of the length of the wires.
It provides a programmable output range on all analog output channels ( 0~10 VDC, 0 ~+20 mA or +4 ~ +20 mA ).
It provides 4 channels for digital input, each of which features photocoupler isolation. Either sink- or source-type inputs can be selected via wire connections, and all channels can be used as 32-bit counters.
It is fully RoHS-compliant and features 4 kV ESD protection as well as 2000 VDC intra-module isolation are also provided to enhance noise immunity capabilities in industrial environments.
