Card mở rộng 4 kênh AI + 4 kênh AO + 4 kênh DI + 4 kênh DO ICP DAS XB310 CR

4-ch AI, 4-ch AO, 4-ch DI and 4-ch DO Expansion Boar

Tính năng

  • Multifunction (4 AI, 4 AO, 4 DI, 4 DO)
  • Individual Channel Confi guration
  • Switch Selectable Voltage or Current Input/Output
  • Open Wire Detection for Current Output
  • Confi gurable Power-on Value Settings
  • Digital Input Channels can be used as 32-bit Counters
Chia sẻ:
Model: XB310 CR
Views: 914

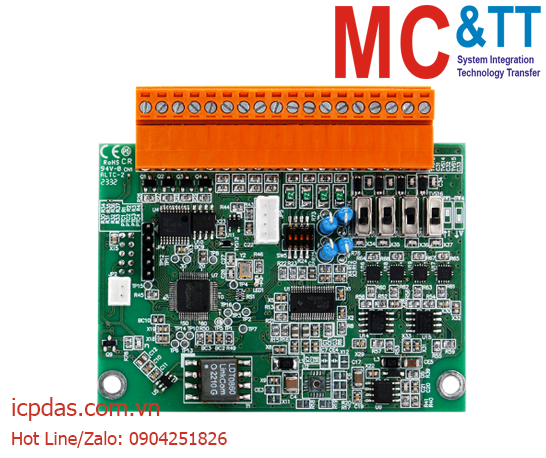

The XB310 is a multifunction expansion board that includes 4 analog input channels, 4 analog output channels, 4 digital input channels and 4 digital output channels.

It provides a programmable input range on all analog input channels (+/-2.5 V、+/-5 V、+/-10 V、0 ~ 5 V、0 ~ 10 V、+/-20 mA、0 ~ 20 mA or 4 ~ 20 mA), analog output channels are 12- bit at 0 ~ 10 V, 0 ~ 20 mA or 4 ~ 20 mA. Each analog input channel can be configured for an individual range and provides a high overvoltage protection of 60 VDC.

Voltage and current inputs/outputs are switch selectable.

Isolation
Intra-module Isolation 2000 VDC
EMS Protection
ESD (IEC 61000-4-2) ±4 kV Contact For Each Terminal
±8 kV Air For Random Terminal
Analog Input
Channels 4
Type ±2.5 V, ±5 V, ±10 V, 0 ~ 5 V, 0 ~ 10 V, ±20 mA, 0 ~ 20 mA, 4 ~ 20 mA (Switch Selectable)
Resolution 16-bit
Accuracy ±0.1%
Sampling Rate 4-ch Bulk mode: 10KHz
4-ch Polling mode: 1KHz
Overvoltage Protection 60 VDC
Individual Channel Configuration Yes
Analog Output
Channels 4
Type 0 V ~ +10 V, 0 mA ~ +20 mA, +4 mA~ +20 mA (Switch Selectable)
Resolution 12-bit
Accuracy ±0.3%
Voltage Output Capability 10 V @ 20 mA
Current Load Resistance 500 Ω
Individual Channel Configuration Yes
Digital Input/Counter
Channels 4
Type Source
ON Voltage Level Close to GND
OFF Voltage Level Open
Max. Counts 32 bit
Frequency 15 KHz
Min. Pulse Width 33us
Overvoltage Protection 60 VDC
Low Pass Filter 0.1 ~ 6553.5 ms (5KHz ~ 0.08 Hz)
Digital Output
Channels 4
Type Sink
Load Voltage +3.5 to +50 VDC
Load Current 700 mA/Channel
Overvoltage Protection 60 VDC
Overload Protection Yes
Short-circuit Protection Yes
Power on Value Yes, Programmable
USB
Specification USB 2.0 High-Speed (480 Mbps)
Power
Consumption 2 W Max.
Powered from Terminal Block 5 VDC
Mechanical
Dimensions (mm) 59 mm x 82 mm x 13 mm (W x L x H)
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -30 ~ +80 °C
Humidity 10 ~ 90% RH, Non-condensing
XB310     CR  4-ch AI, 4-ch AO, 4-ch DI (Dry) and 4-ch DO (Sink,NPN,3.5~50VDC) Expansion Board (RoHS)
