4-port Metal Industrial USB 2.0 Hub
Tính năng
• Compliant with USB Specification Revision 2.0
• Provides 4 Downstream Ports
• Supports High-speed (480 Mbps) and Full-speed (12 Mbps)
• Only Supports Self-powered Mode +10 ~ +30 VDC Power Input (power adapter included)
• Supports Downstream Port Status with LED
The USB-2562M allows you to add multiple high performance USB 2.0 peripheral devices to your computer (Or XP-8000 series). It supports the USB 2.0 high-speed mode that can achieve 480 Mbps data transmitting rate. The USB-2562M only supports self-powered mode (drawing power from an external power supply). Externally powered USB hubs are the only way to guarantee the broadest compatibility for USB devices.
| LED Indicators | |
|---|---|
| Status | 1 x Power 4 x Downstream Ports |
| USB | |
|---|---|
| Ports | 4 |
| Specification | USB 1.1 and USB 2.0 standard compatible |
| Transfer Speed | 480 Mbit/s-high speed mode 12 Mbit/s- full speed mode 1.5 Mbit/s-low speed mode |
| Supply Current | 500 mA Max. per port |
| Connector | 1 x Upstream (Type B) 4 x Downstream (Type A) |
| Power | |
|---|---|
| Input Range | +10 ~ +30 VDC |
| Consumption | 0.25 A @ 24 VDC for 250mA per port. 0.5 A @ 24 VDC for 500mA per port. |
| Mechanical | |
|---|---|
| Casing | Metal |
| Dimensions (mm) | 32 x 108 x 86 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, non-condensing |

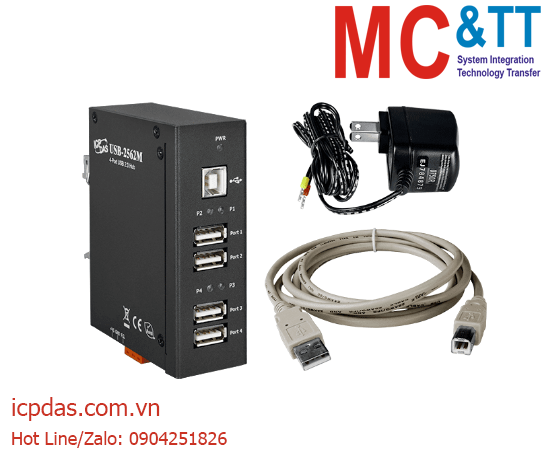

| USB-2562M/S CR | 4-Port Industrial USB 2.0 Hub with Metal Case (RoHS) Includes CA-USB18 Cable and GPSU06U-6 Power Supply |
