1-channel 4 ~ 20 mA Current Input / PWM Output Signal Conditioner
Features

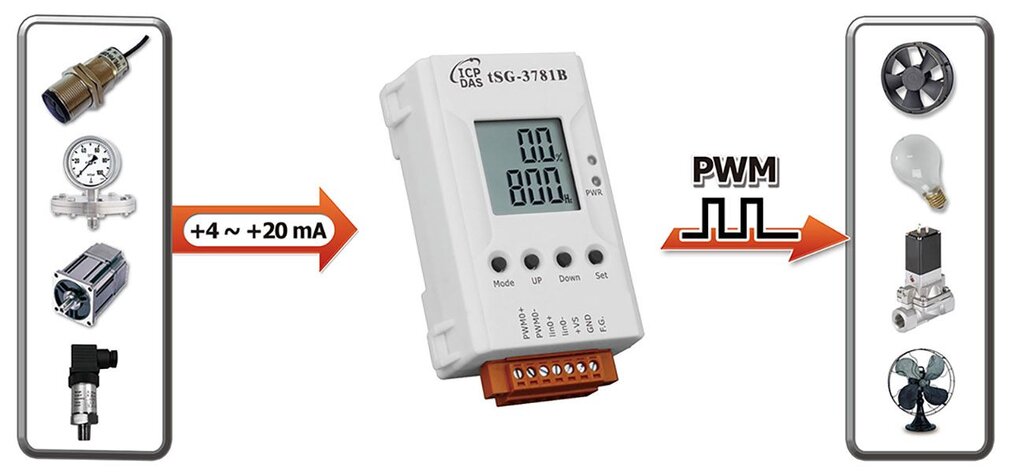

The tSG-3781B is a single-channel DC current input signal conditioning module that converts 4~20mA current input to PWM output. PWM output has a duty cycle of 0%~100% and performs a linear conversion of the 4~20mA current input. PWM output frequency is adjustable from 600Hz to 800Hz via push buttons. tSG-3781B includes a monochrome LCD display that shows the duty cycle and frequency of the PWM output signal.
| Display | |
|---|---|
| Type | Monochrome Graphics LCD (26×26 mm Viewing Area) |
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for each Terminal |
| LED Indicators | |
|---|---|
| Status | 1 x Power and Communication |
| Analog Input | |
|---|---|
| Channels | 1 |
| Range | +4 ~ +20 mA |
| Accuracy | ±0.1% of full range |
| Bandwidth | 1 kHz |
| Input Impedance | 141 Ω |
| PWM | |
|---|---|
| Channels | 1 |
| Type | PWM |
| Sink/Source (NPN/PNP) | Source |
| Frequency | 600 ~ 800 Hz |
| Duty Cycle | 1 to 100% |
| Mode | Continuous |
| Power | |
|---|---|
| Reverse Polarity Protection | Yes |
| Input Range | +10 ~ +30 VDC |
| Consumption | 0.2 W (Typ.) 22.0 W Max. (Note2) |
| Mechanical | |
|---|---|
| Dimensions (mm) | 53 x 27 x 87 (W x L x H) |
| Installation | DIN-Rail or Wall Mounting |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
| tSG-3781B CR | 1-channel 4 ~ 20 mA Current Input / PWM Output Signal Conditioner (setting buttons are located at the bottom side) (RoHS) |
