Bộ chuyển đổi RS-232/RS-422/RS-485 sang Bluetooth LE ICP DAS tBLE-720 CR

RS-232/RS-422/RS-485 to Bluetooth LE Converter (RoHS)

Chia sẻ:
Model: tBLE-720 CR
Views: 1684

Bộ chuyển đổi RS-232/RS-422/RS-485 sang Bluetooth LE ICP DAS tBLE-720 CR

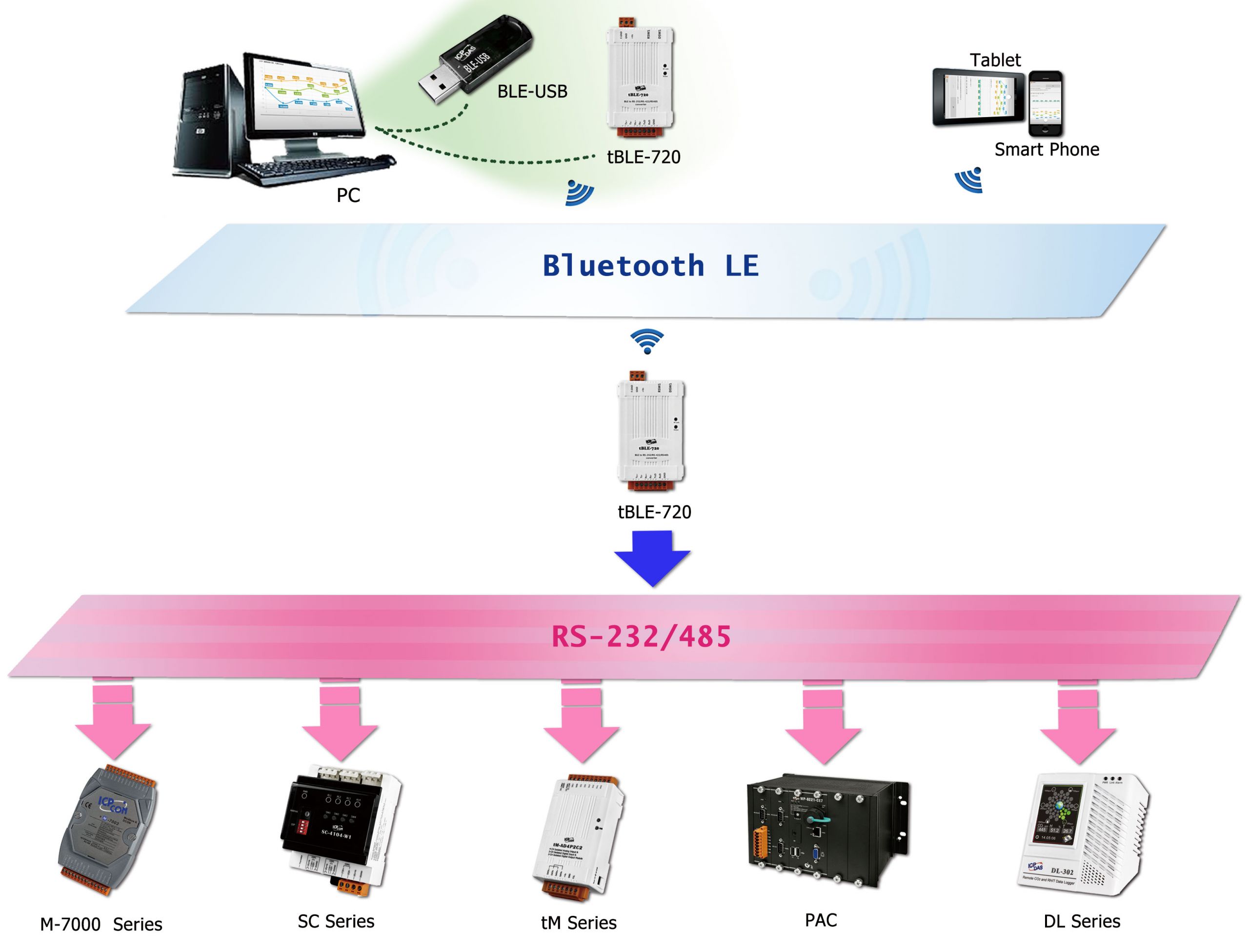

The tBLE-720 module is designed for serial network like RS-232, RS-422 or RS-485. It allow RS-232, RS-422 or RS-485 interface to be converted to Bluetooth low energy (LE) piconet network. User can choose tBLE-720 or mobile device (e.g. smart phone, tablet or notebook) to do the connection, which provides Bluetooth LE data conversion between two devices. The tBLE-720 has two transmission modes – advertisement and connection mode. Users not only can send advertising packet in the advertisement mode but also can send connection packet in the connection mode. It supports different roles in each transmission mode. One is broadcaster and observer in advertisement mode, and the others is central and peripheral in connection mode. User can use dip switch to change transmission mode and role. The tBLE-720 supports a lot of useful AT commands. They can set many parameters such as connection parameters, broadcast parameters. The tBLE-720 also provides slave security mechanism. The mechanism can obstruct illegal master, and the slave will ignore connection request from illegal master. In addition, ICPDAS provides software utility to easily configure and test the tBLE-720 modules via RS-232, RS-422 or RS-485.



LED Indicators
Status 1 x Status
1 x RF link
RF
Antenna 1.0 dBi chip antenna
Data Transmission Rate 85 kbps
Frequency Band 2.4 GHz ISM (2402 ~ 2480 MHz)
RX Sensitivity -94 dBm
Standard Bluetooth 4.0
Tx Power -20 ~ 4 dBm
Max. Slaves 3
Transmission Distance (LoS) 20 m
Bluetooth LE
Connection Role Connection Mode: Central/Peripheral
Broadcast Mode: Observer/Broadcaster
Standard Bluetooth 4.0
COM Ports
Ports 1 x RS-232
1 x RS-422
1 x RS-485
Baud Rate 9600~115200 bps
Data Format N, 8, 1
HMI
DIP Switch Dip switch: Role /Transmission mode
Rotary switch: Baud rate
Power
Input Range +10 ~ +30 VDC
Consumption 1W
Mechanical
Casing Plastic
Dimensions (mm) 52 x 95 x 27 (W x L x H)
Installation DIN-Rail
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -25 ~ +75 °C
Humidity 5 ~ 95% RH, Non-condensing
tBLE-720     CR  RS-232/422/485 to Bluetooth LE Converter (RoHS) (Asia Only)
