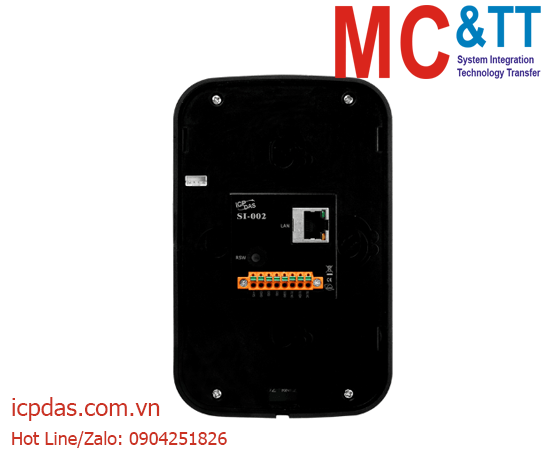

Trạm giao tiếp nội bộ qua video ICP DAS SI-002 CR

Video Intercom Door Station

Tính năng

Trạm giao tiếp nội bộ qua video ICP DAS SI-002 CR

• Full-duplex voice and video intercom
• Support for SIP communications architecture
• Using high-resolution camera 1080P (1920 x 1080)
• Advanced echo cancellation technology
• Built-in high sensitivity microphone and speaker
• Built-in call button
• Built-in Relay output channel (door control or alarms output)
• Built-in Digital input channel (door magnetic switch detection or external emergency button)
• Support Card Type: Mifare Classic, Ultralight, DESFire

Chia sẻ:
Model: SI-002 CR
Views: 615

Trạm giao tiếp nội bộ qua video ICP DAS SI-002 CR

SI-002 is a video intercom door station that supports VoIP technology, SIP communication protocol and RFID induction. With the HA-401 product, households can see visitors’ image and have a video conversation with them when the doorbell ringing. After the identity confirmation, they can open the door remotely. Also, users can upload an image shot via FTP. Using high-resolution CMOS camera and advanced echo cancellation technology can show a clearer picture and excellent audio quality and timeliness of transport. It is a compact video intercom solution for building residential.

RFID
Frequency 13.56 MHz
Supported Card Mifare Classic, Ultralight, DESFire
Digital Input
Channels 2
Type Dry contact (Source)
Dry Contact, ON Voltage Level Close to GND
Dry Contact, OFF Voltage Level Open
Relay Output
Channels 1 x Form C (N.O./COM./N.C.)
Electrical Endurance 1 x 10^5 ops
Mechanical Endurance 2 x 10^8 ops
HMI
Camera 1080P (1920 x 1080), CMOS Sensor
Audio AMP 2.5 W; Digital microphone
Ethernet
Ports RJ-45 x 1, 10/100 Base-T
(Auto-negotiating, Auto MDI/MDI-X, LED indicators)
Power
Reverse Polarity Protection Yes
Input Range 12 V ~ 48 VDC
Consumption 1.68W
Mechanical
Dimensions (mm) 102 x 161 x 41 (W x L x H)
Environmental
Operating Temperature -10℃ ~ +60℃
Storage Temperature -20℃ ~ +70℃
Humidity 10% ~ 90% RH, Non-condensing

• One-touch Calling
• Voice Conversation
• Remote Door Control
• Video Surveillance
• Door Position Detection
• LINE Real-time Information Notice

SI-002     CR Video Intercom Door Station (RoHS)
