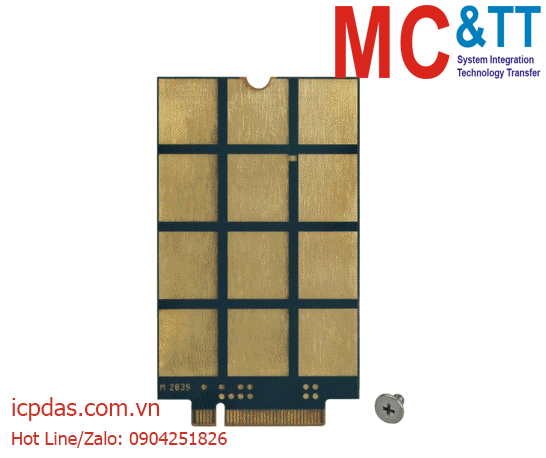

Card M.2 5G Sub-6 GHz ICP DAS RM500Q-GL CR

IoT/eMBB-Optimized 5G Sub-6 GHz M.2 Module (Asia Only)

Tính năng

  • 5G/4G/3G multi-mode module with M.2 form factor,optimized for IoT and eMBB applications
  • Worldwide 5G and LTE-A coverage
  • Both NSA and SA modes supported
  • Region of Production : China
Chia sẻ:
Model: RM500Q-GL CR
Views: 852

RM500Q-GL is a 5G module optimized specially for IoT/eMBB applications. Adopting the 3GPP Release 15 LTE technology, it supports both 5G NSA and SA modes. Designed in an M.2 form factor.

3G System
Frequency Band WCDMA B1/B2/B3/B4/B5/B8/B19
4G System
Frequency Band LTE-FDD:
B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/
B19/B20/B25/B26/B28/B29/B30/B32/B66/B71

LTE-TDD: B34/B38/B39/B40/B41/B42/B43/B48
5G System
Frequency Band n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48*/n66/n71/n77/n78/n79
Mechanical
Dimensions (mm) 30.0 x 52.0 x 2.3 (W x L x H)
Environment
Operating Temperature -30°C ~ +70°C
Storage Temperature -40°C ~ +90°C
RM500Q-GL     CR  IoT/eMBB-Optimized 5G Sub-6 GHz M.2 Module.(Asia Only)
