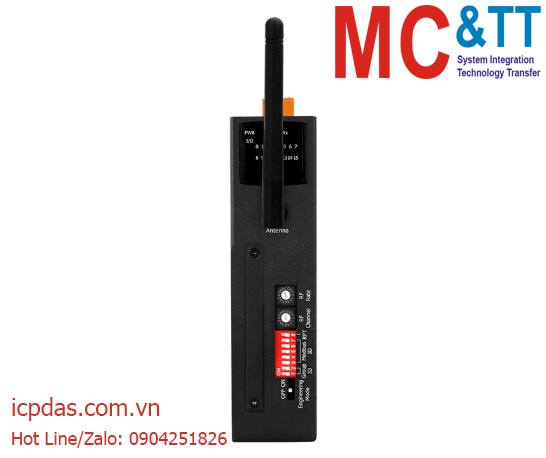

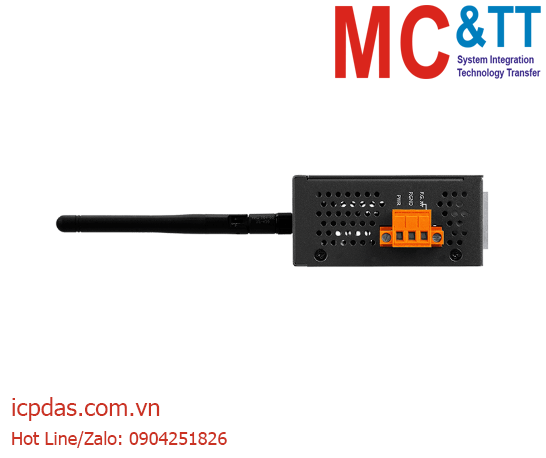

Module RF 433 MHz Modbus RTU 1 khe cắm I/O ICP DAS RFU-IO-433 CR

433 MHz RF Wireless Module with one I/O Slot

Tính năng

  • 433 MHz Radio Frequency
  • 16 RF channels with 100 kHz channel spacing
  • Provides RF Baud Rates from 650 to 57600 bps
  • RF output power default 10 dBm, maximum 19 dBm
  • Provides 4 Group IDs numbered from 0 ~ 3.
  • Wireless line of sight (LOS) transmission range of up to 300 meters at an RF Baud Rate of 9600 bps and output power 10 dBm.
  • Modbus RTU communication protocol.
  • Modbus station ID: 1 ~ 32.
  • One XV I/O board can be installed.
  • Supports I/O pair-connection mode.
  • Supports repeater mode
Chia sẻ:
Model: RFU-IO-433 CR
Views: 1008

RFU-IO-433 is a 433 MHz RF wireless I/O unit that uses the Modbus communication protocol. A remote Modbus master can use a 433 MHz wireless converter, such as the RFU-433, to convert Modbus commands into 433 MHz signals to control the I/O module on the RFU-IO-433, thereby implementing a wireless I/O solution. The RFU-IO-433 can achieve a transmission distance of 300 meters at a wireless baud rate of 9600 bps in a line-of-sight environment. To address potential environmental interference, the RFU-IO-433 offers multiple wireless baud rate options, ranging from 57600 bps to 650 bps, allowing users to make adjustments. Additionally, users can adjust the wireless channel and group ID to avoid interference between adjacent 433 MHz networks. The RFU-IO-433 supports repeater mode to overcome communication distance and dead zone issues. The RFU-IO-433 also provides I/O pair-connection mode for remote I/O control without a host. These features can be configured via rotary and dip switches, making system maintenance and equipment replacement simple and convenient.

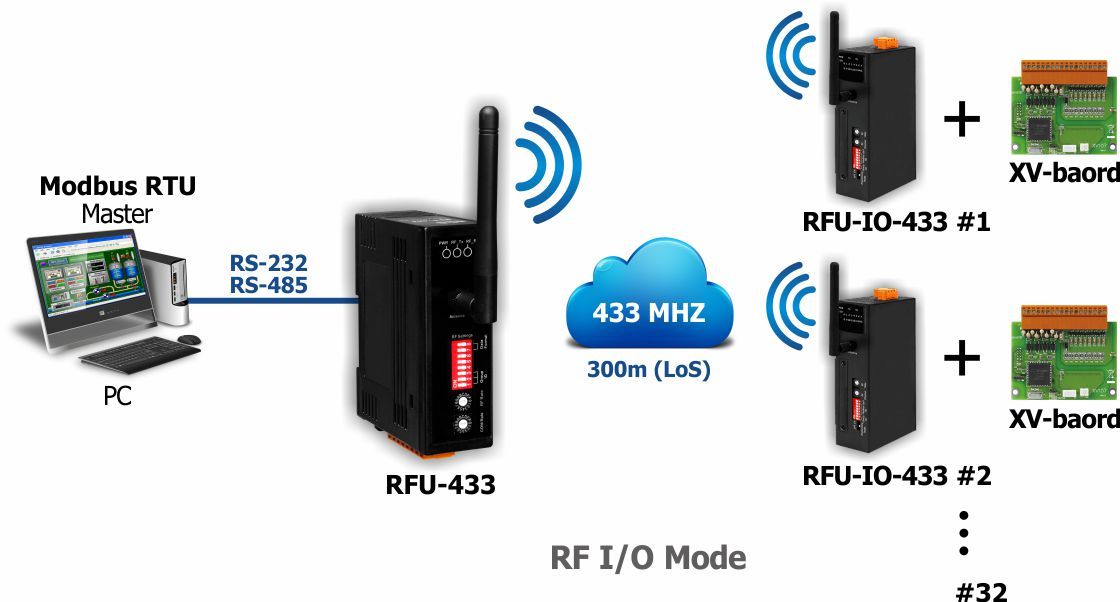

  • RF I/O Mode

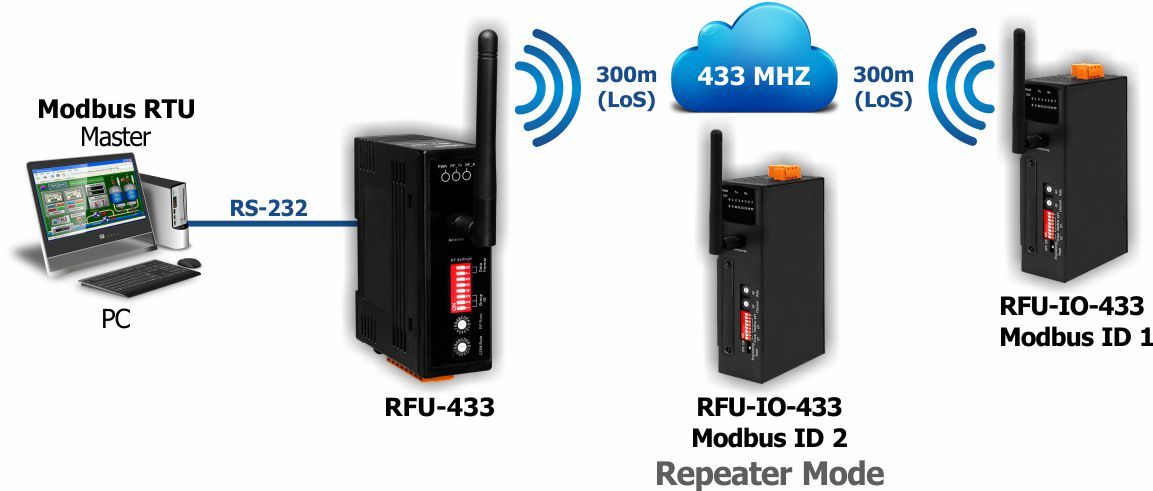

  • Repeater Mode

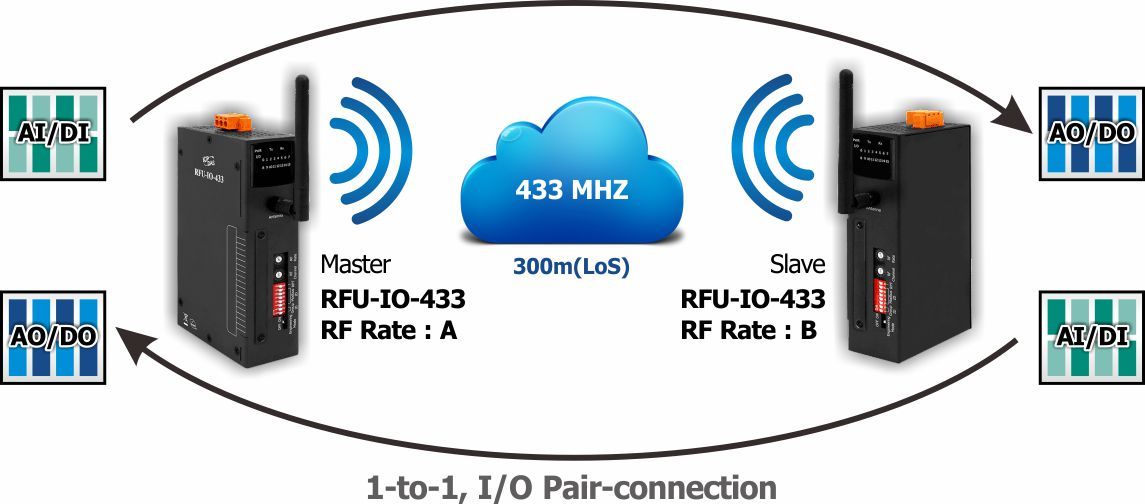

  • 1-to-1 Pair-connection Mode

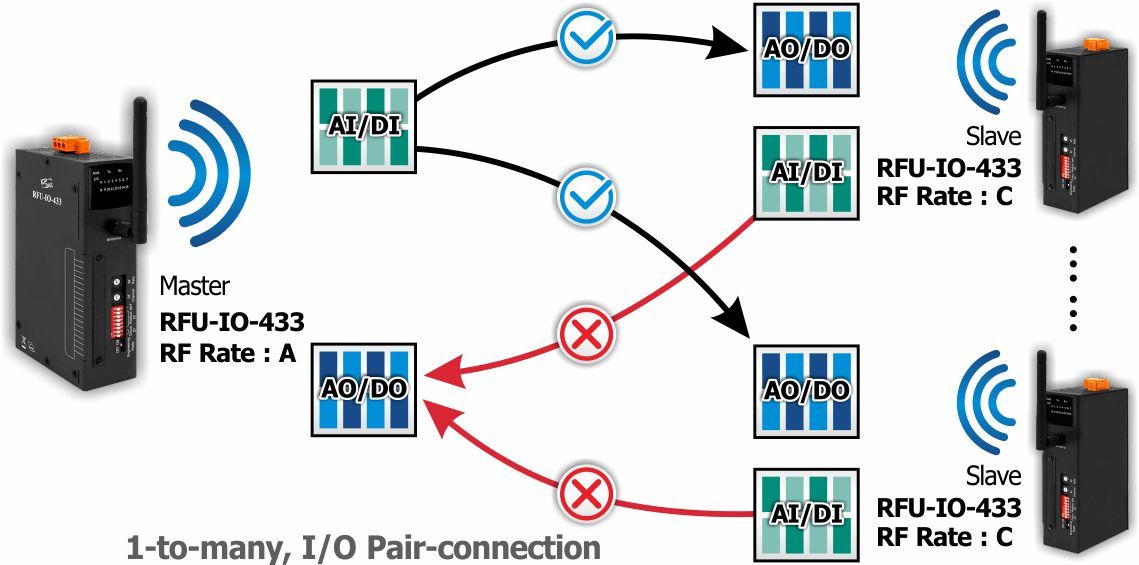

  • 1-to-many Pair-connection Mode

EMS Protection
EFT (IEC 61000-4-4) +/- 1 kV
ESD (IEC 61000-4-2) +/- 4 kV Contact
Surge (IEC 61000-4-5) +/- 1 kV
LED Indicators
Status PWR * 1, Tx * 1, Rx * 1
RF
Antenna 0 dBi Omni directional, RP-SMA
Baud Rate 650 ~ 57600 bps
Channels 16
Group ID 0 ~ 3
Protocol Modbus RTU
Radio Frequency 433.1 MHz ~ 434.6 MHz
Transmission Power Default 10 dBm, Max 19 dBm
Transmission Distance (LoS) 300 m (9600 bps, output power 10 dBm
Antenna
Dimensions (mm) φ7.8 x 108 mm
I/O Expansion
I/O Type plug-in, XV-board
Slots 1
Power
Input Range +10 VDC ~ +30 VDC
Consumption 3 W @ 24 VDC
Mechanical
Dimensions (mm) 150 mm x 38 mm x 97 mm
Installation DIN-Rail
Environment
Operating Temperature -25℃ ~ +75℃
Storage Temperature -30℃ ~ +80℃
Humidity 10 to 90% RH (Non-condensing)
RFU-IO-433     CR  433 MHz RF Wireless Module with one I/O Slot (RoHS)
