Radio Modem kết nối RS-232/RS-485 ICP DAS RFU-400 CR

429 MHz RF Wireless Modem with 1-port RS-232/RS-485 (Asia Only)

Đang chờ hình ảnh sản phẩm

Tính năng

Radio Modem kết nối RS-232/RS-485 ICP DAS RFU-400 CR

  • 429/433 MHz Radio Frequency
  • 16 RF Channels
  • 4 RF Baud Rates
  • Includes a PA switch that can be used to enhance the RF power
  • Wireless line of sight (LOS) transmission range of up to 1000 meters at an RF Baud Rate of 9600 bps
  • Transparent transmission mode
  • Provides Baud Rates from 1200 to 115200 bps for both the RS-232 and RS-485 interfaces
  • ESD Protection: Contact +/-4 kV
  • Isolation: 3000 VDC for DC-to-DC, 2500 Vrms using a photocoupler
  • DIN-Rail Mountable
  • Operating Temperatures, -25 °C ~ +75 °C
Chia sẻ:
Model: RFU-400 CR
Views: 837

Radio Modem kết nối RS-232/RS-485 ICP DAS RFU-400 CR

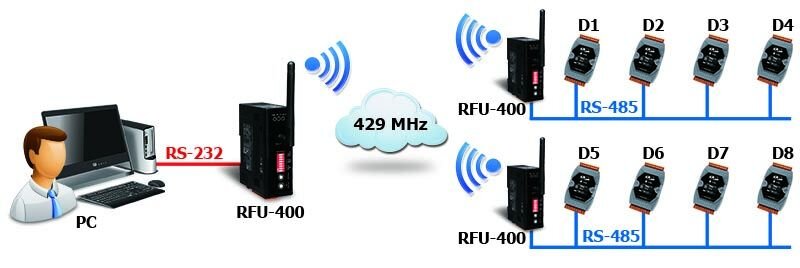

The RFU-400 is an RS-232/RS-485 to 429 MHz radio modem that can be used to convert data from an RS-232/RS-485 device to an RF message that can then be transmitted in transparent mode via the 429 MHz ISM frequency band. The RFU-400 provides a maximum line of sight (LOS) transmission distance of 1000 meters (1 km) at an RF Baud Rate of 9600 bps. In order to overcome the interference that may be encountered in harsh environments, the RFU-400 allows the RF transmission Baud Rate to be configured to a minimum of 650 bps, enhancing the capability of the modem to resist noise and other interference. Additionally, the RF channels and Group IDs are adjustable, which is helpful when attempting to avoid interference encountered when two RFU-400 networks are adjacent. The 16 RF channels and 8 Group IDs can be configured in order to distinguish and control the different RFU-400 networks. The majority of these configuration parameters can be adjusted using a combination of the Rotary and DIP switches, thereby providing a simple method of maintaining the system if the RFU-400 modem needs to be replaced.

Models RFU-400 RFU-433
RF Interface
Radio Frequency 429.1750 ~ 429.9250 MHz
433.1000 ~ 434.6000 MHz		 433.1000 ~ 434.6000 MHz
Baud Rate 115200 bps ~ 650 bps 57600 bps ~ 650 bps
Transmission Power Max 19 dBm Default 10 dBm, Max 19 dBm
Antenna 0 dBi Omni directional
Transmission Distance (LoS) 1000 m (at 9600 bps RF Rate and 19 dBm Tx Power) 500 m (at 9600 bps RF Rate and 10 dBm Tx Power)
Group ID 0 ~ 7
Protocols Transparent transmit
Temporary Buffer Size 512 Bytes
Configuration Rotary and DIP switch
Repeater Mode Support 1 hub
COM Port Interface
RS-232 TxD, RxD and GND
RS-485 D+, D- ; 3000 VDC for DC-to-DC
Baud Rate (bps) 1200 ~ 115200
Data Format N81, E81, O81
LED Indicators
RF_Tx Green
RF_Rx Yellow
PWR Red
Isolation
Intra-module Isolation 2500 Vrms for photocoupler (RS-485/RS-232 side)
EMS Protection
ESD +/- 4 kV Contact
EFT +/- 1 kV
Surge +/- 1 kV
Power
Input Voltage Range +10 VDC ~ +30 VDC
Power Consumption 1 W (Max.)
Mechanical
Flammability Fire Retardant Materials
Dimensions (W x L x H) 108 mm x 84 mm x 33 mm ( not include antenna )
Antenna Dimensions (L x Ø) 108 mm x 10 mm
Installation DIN-Rail
Environment
Operating Temperature -25 °C ~ +75 °C
Storage Temperature -30 °C ~ +80 °C
Relative Humidity 10 ~ 90% RH, Non-condensing
RFU-400     CR 429 MHz RF Wireless Modem with 1-port RS-232/RS-485 (Asia Only) (RoHS)
ANT-104-01 0 dBi 400 MHz External Antenna (for RFU-400)
ANT-104-02 0 dBi 400 MHz External Antenna (for RFU-433)
3S001-2 RG58A/U 1 Meter Long SMA male to SMA Female (for RFU-400)
3S001-1 RG58A/U 1 Meter Long RP-SMA male to RP-SMA Female (for RFU-433)
