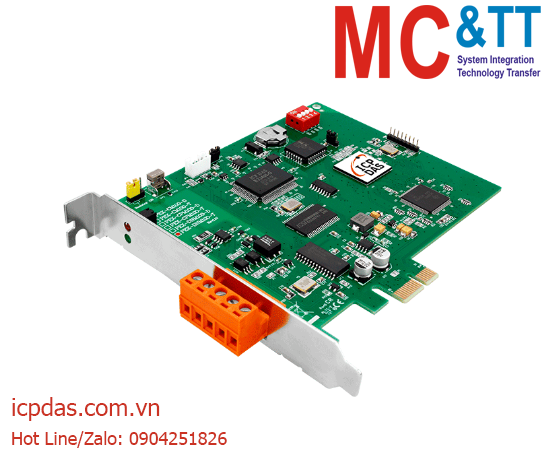

Card PCI Express 1 cổng DeviceNet Master ICP DAS PEX-DNM100-T CR

1 Port Intelligent DeviceNet Master PCI Express Board

Chia sẻ:
Model: PEX-DNM100-T CR
Views: 816

The PEX-DNM100 can represent an economic solution of DeviceNet application and be a DeviceNet master device on the DeviceNet network. It is a “Predefined Master-Slave connection Set”. The PEX-DNM100 supports Group 2 only Server and UCMM functions to communication with slave devices. It has an independent CAN bus communication port and has the ability to cover a wide range of DeviceNet applications.

Besides, the PEX-DNM100 uses the CAN controller NXP SJA1000, which provide bus arbitration, error detection with auto correction and re-transmission function.It can be installed on almost any windows-based system, for example Windows system. It is popularly applied in the industrial automation, building automation, vehicle, marine, and embedded control network. In order to expand the DeviceNet functions of ICPDAS products, the PEX-DNM100 is developed for this purpose.

Software
Driver Windows XP/7/8/10 (32-bit/64-bit OS)
SDK VB 6.0, VC++ 6.0, BCB 6.0, Visual Studio .NET
LED Indicators
Status Green LED, Red LED
PC Bus
Type PCI Express bus
Board No. By DIP switch
DeviceNet
Controller NXP SJA1000T
Built-in Microprocessor
Ports 1
Baud Rate 125 k, 250 k, 500 k
Isolation 3000 VDC for DC-to-DC, 2500 Vrms for photo-couple
Terminal Resistor Jumper for 120 Ω terminal resistor
Protocol DeviceNet Volumn I ver2.0, Volumn II ver2.0
CAN Specification ISO-11898-2, CAN 2.0A and CAN 2.0B
Power
Consumption 300 mA @ 5 V
Mechanical
Dimensions (mm) 133 x 22 x 98 (W x L x H)
Environment
Operating Temperature 0 ~ +60 ℃
Storage Temperature -20 ~ +70 ℃
Humidity 5 ~ 85% RH, Non-condensing

PEX-DNM100-T     CR  1 Port Intelligent DeviceNet Master PCI Express Board (5-pin Screw Terminal Connector) (RoHS)

There exist two memory areas, “Input Area” and “Output Area”. The input data of all DeviceNet slaves would be stored in the “Input Area” by DeviceNet master scan engine. Oppositely, the output data of those DeviceNet slaves would be in the “Output Area”. Please refer to the following figure.

Users can read a bulk data from “Input Area” in the DeviceNet Master module, like PISO-DNM100U or I-8124W. This bulk data contains multiple devices’ input statuses. If one of the input status of the remote DeviceNet slave changes, the corresponding data located in the “Input Area” would change immediately. Oppositely, the “Output Area” contains multiple devices’ output data. Users may change the output value of a certain device by changing the corresponding data located in the “Output Area”.
