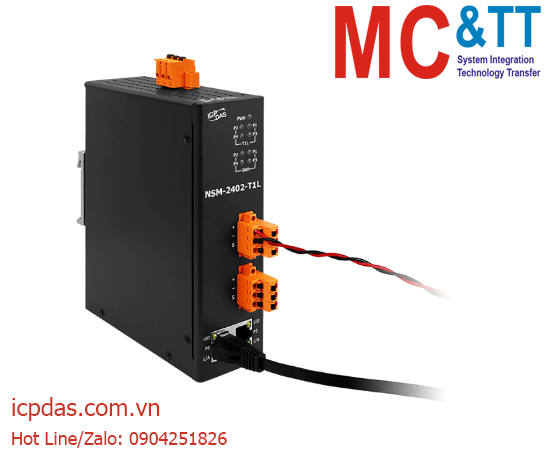

Switch công nghiệp 2 cổng Ethernet RJ45 + 4 cổng T1L Ethernet ICP DAS NSM-2402-T1L CR

Unmanaged 2-port 100 Mbps and 4-port T1L Single Pair Ethernet Switch

features

  • 2-port RJ45 (10/100 Base-TX)
    • Supports Daisy-chain Topology
    • Supports LAN bypass
  • 4-port T1L (10 Base-T1L)
    • Independent LED indicators for SNR Quality
    • Up to 1000 m communication distance
Chia sẻ:
Model: NSM-2402-T1L CR
Views: 1204

The NSM-2402-T1L is a 2-port 10/100 Mbps and 4-port 10 Mbps T1L Ethernet Switch. The new architecture provides a communication distance far beyond that of traditional Ethernet, greatly expanding the scope of application.

LED Indicators
Status PWR, T1L L/A, T1L SNR
Ethernet
Ports 2 x 10/100 Base-Tx
Standards IEEE 802.3 for 10 Base-T,
IEEE 802.3u for 100 Base-TX,
LAN bypass Yes
T1L Communication
Ports 4 x 10 Base-T1L
Standards IEEE802.3cg
Transmission Distance 1000 m (max.)
Connector 3-pin Spring Clamp
Cable Type Shielded Twisted Pair (STP), 18 AWG ~ 24 AWG
Power
Reverse Polarity Protection Yes
Input Range 12 ~ 48 VDC
Consumption 2.5 W (max.)
Mechanical
Casing Metal
Dimensions (mm) 44 x 172 x 139 (W x L x H)
Environment
Operating Temperature -25 ~ +75 ℃
Storage Temperature -40 ~ +80 ℃
Humidity 10 ~ 90% RH, Non-condensing
NSM-2402-T1L     CR  Unmanaged 2-port 100 Mbps and 4-port T1L Single Pair Ethernet Switch (RoHS)
