Network Management Controller with E3845 CPU and 64GB SSD
Tính năng
The NMC-9181 is a simple and easy-to-use network management controller that can be operated without professional skills, and can manage network devices without additional software installation. It is equipped with an Intel E3845 CPU and multiple interfaces, including dual Gigabit Ethernet, HDMI, VGA, USB ports, RS-232 and RS-485 interfaces.

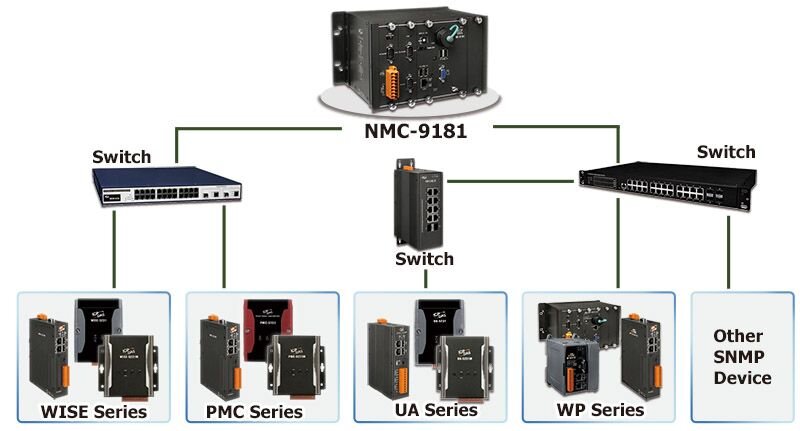

NMC-9181 can manage network devices in the LAN through SNMP protocol, including WP, XP, Wise, PMC, UA series controllers and other SNMP devices.
| Software | |
|---|---|
| OS | Linux Kernel 5.11.0-40 |
| Service | SSH , XRDP, Web Server and LibreNMS |
| Main Unit | |
|---|---|
| CPU | E3845, 1.91 GHz, 64-bit quad core |
| 64-bit Hardware Serial Number | Yes |
| System Memory | 4 GB DDR3 SDRAM |
| Storage | 64 GB SSD, 32 GB CF card (Option) |
| Non-Volatile Memory | 128 KB MRAM, 16 KB EEPROM |
| Real Time Clock | Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer | Dual Watchdog Timer |
| Display | |
|---|---|
| Signal | VGA, HDMI |
| LED Indicators | |
|---|---|
| Status | PWR, RUN, L1, L2 |
| HMI | |
|---|---|
| Buzzer | Yes |
| Rotary Switch | 1 x 10 Position (0 ~ 9) |
| Ethernet | |
|---|---|
| Ports | 2 x RJ-45, 10/100/1000 Base-TX |
| COM Ports | |
|---|---|
| Ports | 1 x RS-232 (3000 VDC Isolated), 1 x RS-485 (3000 VDC Isolated), 2 x RS-232/RS-485 (3000 VDC Isolated) |
| USB | |
|---|---|
| Ports | 4 x USB 2.0 |
| Power | |
|---|---|
| Input Range | +10 ~ 30 VDC (1 kV Isolated ) |
| Redundant Power Inputs | Yes |
| Consumption | 18.5 W |
| Mechanical | |
|---|---|
| Casing | Metal |
| Dimensions (mm) | 239 x 164 x 133 mm |
| Installation | DIN-Rail, Wall mounting |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +60 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, (Non-condensing) |
| NMC-9181 CR | Network Management Controller with E3845 CPU and 64GB SSD (RoHS) |
