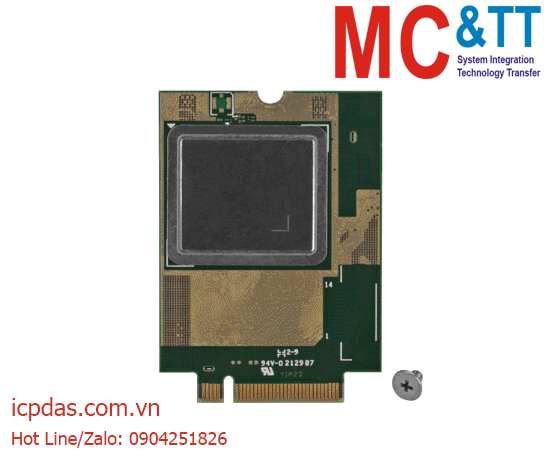

Card M.2 5G Sub-6 GHz ICP DAS MV31-W CR

Ultra High-Speed 5G with LTE and 3G Fallback Modem Card

Tính năng

  • Sub 6 GHZ operation support
  • Global 5G coverage on one single SKU
  • Compact standard 30×42 M.2 with PCIe3.0
  • Region of Production : China
Chia sẻ:
Model: MV31-W CR
Views: 853

The MV31-W IoT modem card delivers ultra high-speed 5G enhanced mobile broadband (eMBB) for performance IoT applications such as industrial routers and gateways, digital signage, industrial computers and tablets in both Stand Alone (SA) and None Stand Alone (NSA) modes. It enables blistering fast data speeds of multiple gigabit per second transmission capability in both downlink and uplink plus-fallback to 4G LTE and 3G networks. It also provides excellent global coverage in both urban areas and regions where 5G is still emerging.

3G System
Frequency Band FDD Bands: 1, 2, 4, 5, 6, 8, 9, 19
4G System
Frequency Band FDD-LTE Bands:
1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 17, 18, 19, 20, 25, 26, 28, 29, 30, 32, 66, 71

TD-LTE Bands: 34, 38, 39, 40, 41, 42, 46 (LAA),48 (CBRS)
5G System
Frequency Band FR1 FDD-LTE Bands: n1, n2, n3, n5, n7, n8, n12, n20, n28, n66, n71
FR1 TD-LTE Bands: n38, n41, n77, n78, n79
Mechanical
Dimensions (mm) 30.0 x 42.0 x 2.5 (W x L x H)
Environment
Operating Temperature -30°C ~ +70°C
Storage Temperature -30°C ~ +85°C
MV31-W     CR  Ultra High-Speed 5G with LTE and 3G Fallback Modem Card
