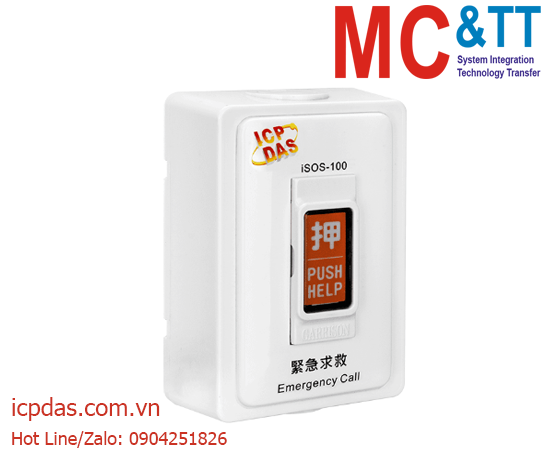

Module nút bấm cảnh báo khẩn cấp không dây trong nhà ICP DAS iSOS-100 CR

iSOS indoor emergency call button module

Tính năng

  • Provide emergency message for help report function
  • Powered by built-in disposable lithium batteries
  • Support 433MHz Radio Frequency
  • Selectable 16 Radio Frequency Channels
  • Active online report
  • Provide wall-mounting Installation
Chia sẻ:
Model: iSOS-100 CR
Views: 925

iSOS-100 is a wireless emergency call button product, by means of sub-1G RF communication interface, it can approach the real wireless deployment. It provides emergency help return function, improve personal safety protection. This system is very suitable for public area construction. For example, public toilet, hospital, nursing homes, open campus, large parking lots and etc. iSOS-100 installs a CR-123A battery delivers reliable electricity and reduces the cost of wiring. Realize emergency information transmission, meet low energy consumption, wireless communication and emergency monitoring, etc., greatly reduce the time and human resources required for system construction and maintenance.

Wireless Emergency Alert System

RF
Channels 0 ~ 15 (Selectable by DIP Switch)
Group ID 0 ~ 3 (Selectable by DIP Switch)
Radio Frequency 433.1000 ~ 434.6000 MHz
Transmission Power 9±1dBm (PA Off) / 18±1dBm (PA On)
Transmission Cycle 1 / 10 / 30 / 60 Secs. 3 / 5 / 10 / 30 Mins. (Selectable by DIP Switch)
1 Sec.(Emergency Triggered Only)
Transmission Distance (LoS) 50 m
Node ID 1 ~ 31 configured by DIP switch
Antenna
Type 0 dBi Spring antenna
(Omni-directional)
Power
Consumption 0.596mAh@1 Day
Battery 1 x CR123A (3.0 VDC)
Battery Life: 2 years (Working Duty: 1 Min.)
Mechanical
Dimensions (mm) 92 x 136 x 52(W x L x H)
Installation Wall-mount
Environment
Operating Temperature -25℃ ~ +60℃
Storage Temperature -30 ~ +80°C (No battery included) -20 ~ +45°C (Battery included)
Humidity 10 ~ 90% RH(Non-condensing)
iSOS-100     CR  iWSN indoor emergency call button module(RoHS) (Asia Only)
