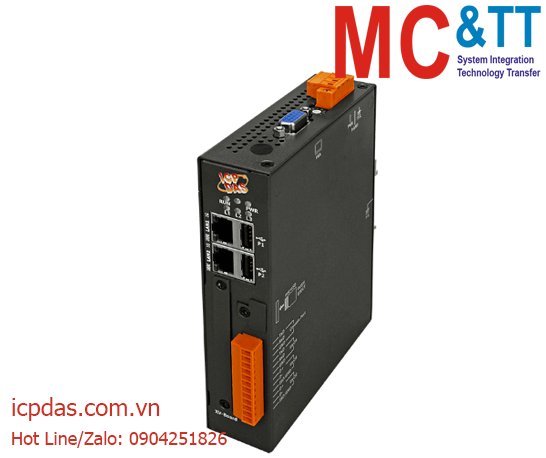

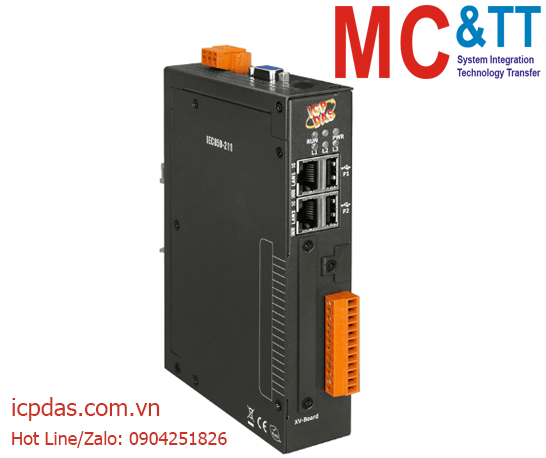

Bộ chuyển đổi IEC-61850 Client sang Modbus TCP Slave Gateway ICP DAS IEC850-211 CR

IEC-61850 Client to Modbus Slave Gateway

Tính năng

  • Read and write IEC61850 objects via Modbus commands
  • Automatically map IEC-61850 data objects to Modbus registers via the Utility
  • Supports MMS data types Boolean, Integer, Unsigned, Float, BIT_STRING, UTC_TIME
  • Supports Modbus function codes 1, 2, 3, 4, 5, 6, 16
  • Supports up to 10 IEC61850 server connections
  • Allows a total of 5000 mapping points
  • Supports GOOSE Publish & Subscribe
  • Supports IEC61850 Reports
  • The Utility supports importing SCL (SCD/CID/ICD) files
Chia sẻ:
Model: IEC850-211 CR
Views: 1038

IEC850-211 is a communication gateway that provides data conversion between an IEC 61850 Client and a Modbus Slave, enabling devices on an IEC 61850 network to be accessed and integrated by existing Modbus systems. It is particularly suitable for substation automation and power monitoring applications. The gateway supports various MMS data types, including Boolean, Integer, Unsigned, Float, BIT_STRING, and UTC_TIME, ensuring data integrity and consistency during conversion. In addition, it supports IEC 61850 Report and GOOSE Publish/Subscribe mechanisms to achieve real-time event transmission and high-speed communication. With the dedicated Utility tool, users can import SCL (SCD/CID/ICD) files and automatically configure data mapping, allowing IEC 61850 data objects to be mapped to Modbus registers, significantly simplifying system integration and improving overall deployment efficiency.

Software
OS Linux Kernel 3.2.14
Protocol Modbus TCP server:
• Function:1,2,3,4,5,6,16

IEC-61850 MMS client:
• connection:Max. 10 MMS servers
• MMS data types : Boolean, Integer, Unsigned, Float, BIT_STRING, UTC_TIME
• Max Mapping Point:5000
• control:
—- status-only
—- direct-with-normal-security
—- direct-with-enhanced-security
—- sbo-with-normal-security
—- sbo-with-enhanced-security
Service SFTP server, Web server
Main Unit
CPU Cortex-A8, 1 GHz
System Memory 512 MB DDR3 SDRAM
Real Time Clock Yes (Provide seconds, minutes, hours, day of week, month, year)
Watchdog Timer Yes, Dual Watchdog Timer
Display
Signal VGA (Analog RGB)
LED Indicators
Status 1 x PWR(Power)
1 x RUN(Running)
1 x L1
1 x L2
1 x L3
Ethernet
Ports 2 x RJ-45, 10/100/1000 Base-TX
COM Ports
Ports 1 x RS-232 (Console, Non-isolated)
1 x RS-232, Non-isolated
1 x RS-485, Non-isolated
1 x RS-485 (2500 VDC, Isolated)
USB
Ports 2
Specification USB 2.0 (Host)
Power
Input Range +12 VDC ~ +48 VDC
Consumption 4.8 W
Mechanical
Casing Metal
Dimensions (mm) 35 x 167 x 119 (W x L x H)
Installation DIN-Rail or Wall Mounting (optional)
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -40 ~ +80 °C
Humidity 10 ~ 95% RH, Non-condensing
IEC850-211     CR  IEC-61850 Client to Modbus Slave Gateway (RoHS)
