Modem 5G công nghiệp kết nối USB 3.1 ICP DAS GTM-205M CR

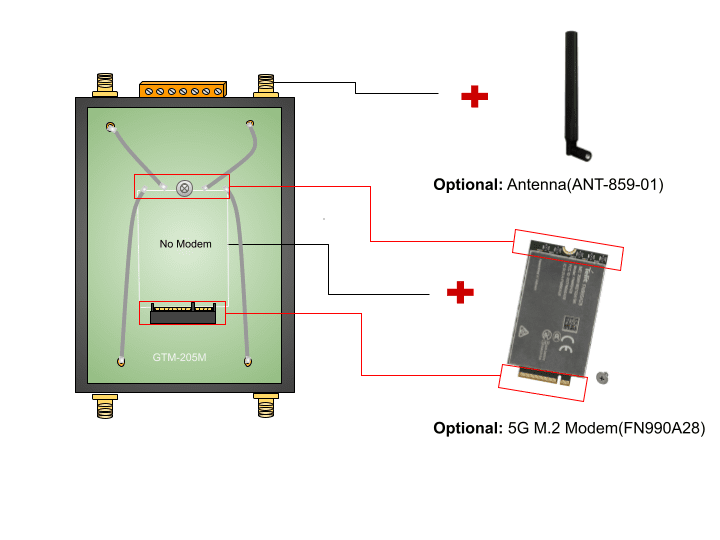

Modem M.2 to USB Converter (No built-in Modem)

Tính năng

  • Optional communication modules can be purchased and installed.
  • Can be used for wireless high-speed data transfer and messaging.
  • Support Standard AT Commands
  • Includes a Digital Input Channel to reset the System
  • Supports USB 3.1 Super Speed Plus Interface.
  • DIN Rail mountable
Chia sẻ:
Model: GTM-205M CR
Views: 852

GTM-205M is an industrial-grade data modem M.2 converter with a USB Super Speed Plus interface. Customers can choose different communication modules according to the requirements of the field site, which can support services in different frequency bands.

GTM-205M supports standard AT commands and also provides an integrated library, allowing customers to focus on and accelerate application development without dealing with command issues of different communication modules.It can be paired with various PLCs and PCs, and through the library, SMS sending and 4G/5G connectivity can be quickly implemented.

LED Indicators
Status 1 x Power
1 x 5G/4G
Reset Input
Type Isolated, 3750 Vrms
ON Voltage Level 3.5 VDC ~ +30 VDC
OFF Voltage Level +1 VDC max.
Input Impedance 3 kΩ, 0.25W
COM Ports
Ports 1 x RS-232 (RxD, TxD, GND. Only for software reset system.)
Baud Rate 115200 bps
USB
Specification 1 x USB 3.1 (Super speed plus)
Driver Windows 10_x64、Windows 11
Mechanical
Casing Metal
Dimensions (mm) 28 x 78.5 x 100 (W x L x H)
Installation DIN-Rail
Environment
Operating Temperature -25℃ to 70℃
Storage Temperature -40℃ to 80℃
Humidity 5~90% RH, non-condensing
GTM-205M     CR  Modem M.2 to USB Converter (No built-in Modem)(RoHS)
