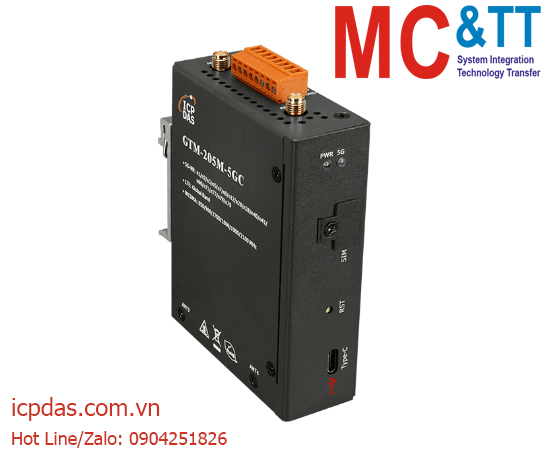

Modem 5G công nghiệp kết nối USB 3.1 ICP DAS GTM-205M-5GC CR

Industrial 5G Modem with USB 3.1 Super Speed Plus interface. (for China)

Tính năng

  • Support 5G SA/NSA Bands
  • Support 4G/3G Global Bands
  • Support TCP Server, TCP Client, and UDP Client Connection from 5G/4G
  • Support Standard AT Commands
  • Includes a Digital Input Channel to reset the System
  • Supports USB 3.1 Super Speed Plus Interface.
  • DIN-Rail mountable
Chia sẻ:
Model: GTM-205M-5GC CR
Views: 857

The GTM-205M-5G is an industrial 5G NR modem with USB Super Speed Plus interfaces that work at frequencies of 5G NR n1/n2/n3/n5/n7/n8/n12/n20/n28/n41/n66/n71/n77/n78/n79 and LTE Global Bands and WCDMA B1/B2/B3/B4/B5/B6/B8/B19. The modems utilize the 5G, 4G or 3G network to transfer data. The features of the GTM-205M-5G allow a variety of PAC and PC applications to take advantage of SMS and 5G or 4G or 3G connectivity.

LED Indicators
Status 1 x Power
1 x 5G
3G System
Frequency Band B1/B2/B3/B4/B5/B6/B8/B19
4G System
Data Transmission Rate FDD: B1/B2/B3/B4/B5/B7/B8/B12(B17)/B13/B14/B18/B19/B20/B25/B26/B28/B29/
B30/B32/B66/B71TDD: B34/B38/B39/B40/B41/B42/B48
5G System
Frequency Band n1/n2/n3/n5/n7/n8/n12/n20/n28/n41/n66/n71/n77/n78/n79
Reset Input
Type Isolated, 3750 Vrms
ON Voltage Level +3.5 VDC ~ +30 VDC
OFF Voltage Level +1 VDC max.T40
Input Impedance 3 kΩ, 0.25W
COM Ports
Ports 1 x RS-232 (RxD, TxD, GND. Only for software reset system.)
Baud Rate 115200 bps
USB
Specification USB 3.1 (Super speed plus)
Driver Windows 10_x64、Windows 11
Mechanical
Casing Metal
Dimensions (mm) 28 x 78.5 x 100 (W x L x H)
Installation DIN-Rail
Environment
Operating Temperature -25℃ to 70℃
Storage Temperature -40℃ to 80℃
Humidity 5~90% RH, non-condensing
GTM-205M-5GC     CR  Industrial 5G Modem with USB 3.1 Super Speed Plus interface. (RoHS) (for China)
