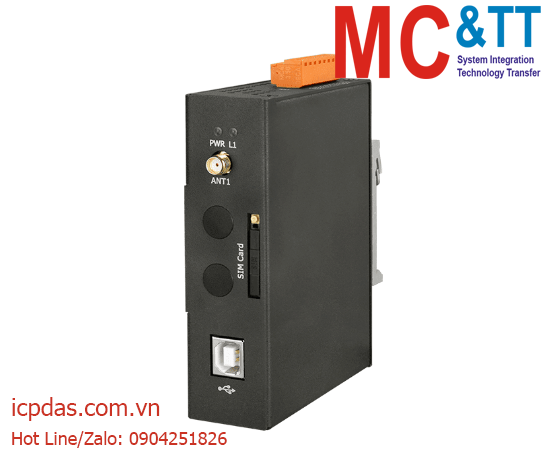

Modem 4G công nghiệp kết nối USB/RS-232 ICP DAS GTM-200M CR

Modem to USB/RS-232 Converter (No built-in Modem)

Chia sẻ:
Model: GTM-200M CR
Views: 854

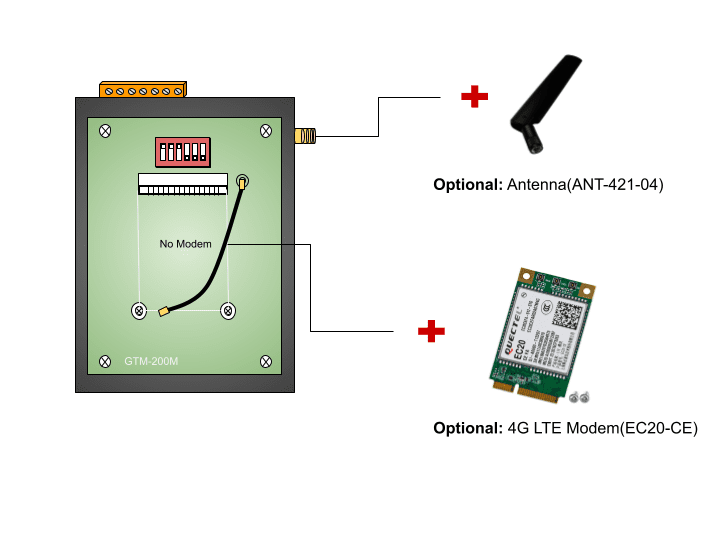

GTM-200M is an industrial modem converter with RS-232 and USB interfaces. Customers can choose to match different communication modules according to the needs of the field, which can support different frequency bands.

The GTM-200M also provides an integrated Library, allowing customers to focus on and speed up the development of applications without having to deal with the command problems of different communication modules. The standard interface can be easily matched with various PLCs and PCs, and SMS transmission and 3G/4G connection can be quickly implemented through the Library.

LED Indicators
Status 1 x Power
1 x 4G/3G/GSM
Reset Input
Type Isolated, 3750 Vrms
ON Voltage Level +3.5 VDC ~ +30 VDC
OFF Voltage Level +1 VDC max.
Input Impedance 3 kΩ, 0.25W
COM Ports
Ports 1 x RS-232 (RxD, TxD, GND)
Baud Rate 9600 bps ~ 115200 bps (default:115200 bps)
USB
Ports USB 2.0 (high speed)
Driver Windows 10_x64、Windows 11
Mechanical
Casing Metal
Dimensions (mm) 28 x 78.5 x 100 (W x L x H)
Panel Cut-out (mm) DIN-Rail
Environment
Operating Temperature -25℃ to 70℃
Storage Temperature -40℃ to 80℃
Humidity 5~90% RH, non-condensing
GTM-200M     CR  Modem to USB/RS-232 Converter (No built-in Modem) (RoHS)
