Modem/Router công nghiệp 4G/5G Ethernet Gateway ICP DAS GRP-2841M CR

4G/5G/ Ethernet Gateway

Tính năng

  • Cortex-A53 CPU, 1.6 GHz, quad-core
  • 1 GB LPDDR4 RAM and 8 GB eMMC Flash
  • Linux Kernel 4.14.98
  • Provide NAT and port forwarding function
  • Intelligent Remote Terminal Unit (RTU)
  • Intelligent multiport serial gateway
  • 4G / 5G wireless module (option)
  • 64-bit Hardware Serial Number for Software Protection
  • 10/100/1000M Two Ethernet Ports
  • 4 Serial Ports (RS-232/485)
Chia sẻ:
Model: GRP-2841M CR
Views: 934

The GRP-2841M provided by ICP DAS is a gateway for Ethernet and serial port. The GRP-2841M can be used for wireless data transmission and other functions through its optional 4G / 5G communication module. With the optional GPS function, the GRP-2841M can also be used as a GPS tracking system for vehicle management or maritime system. It can be used in M2M application to transmit remote I/O, Modbus data or camera video. Within the high-performance CPU, the GRP-2841M can process large amounts of data and is suitable for harsh industrial environments.

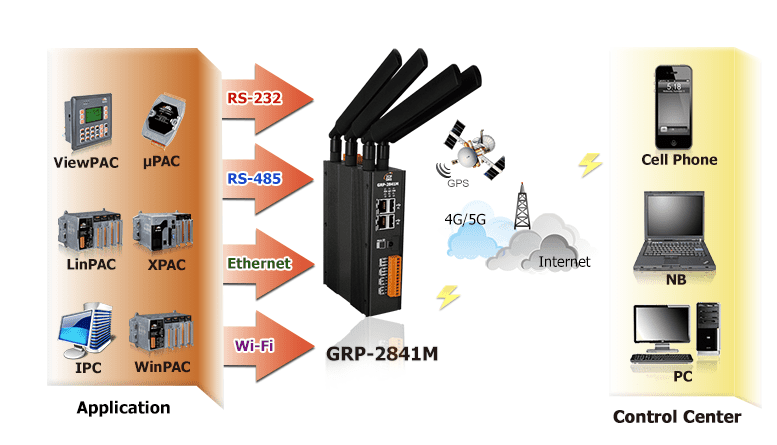

  • 4G / 5G /  Ethernet Gateway Application

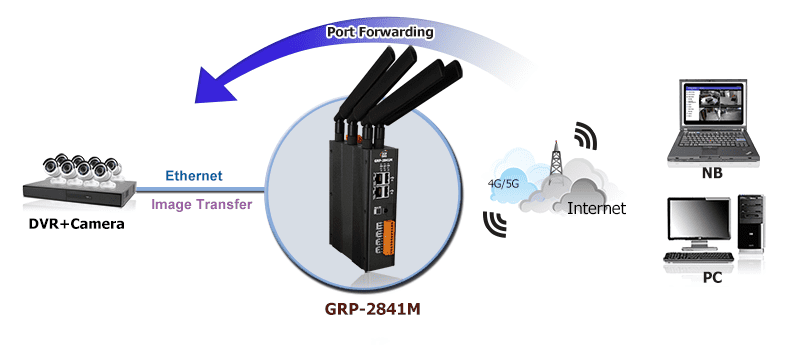

  • Remote Video Monitor

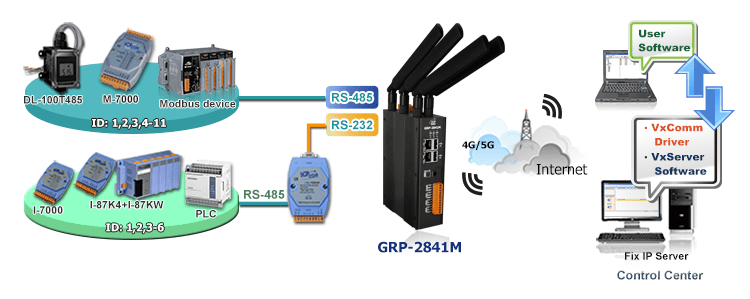

  • Serial Port Gateway Application

  • Node-RED Application

Software
OS Linux Kernel 4.14.98
Service SSH, Web, SNMP Server, SMTP, DDNS
Function NAT and port forwarding function
Remote Terminal Unit (RTU)
Multiport serial gateway
4G/5G wireless router (option)
Main Unit
CPU Cortex-A53 CPU, 1.6 GHz, quad-core
System Memory 1 GB LPDDR4 SDRAM
Storage 8 GB eMMC Flash, 4 GB microSD card (up to 32 GB)
Non-Volatile Memory 64 KB FRAM;
128 KB MRAM
Real Time Clock Provide seconds, minutes, hours, dates,day of week, month, year
Watchdog Timer Yes
LED Indicators
Status 1 x PWR
1 x NET
1 x RUN
1 x L1
1 x L2
1 x L3
Ethernet
Ports 2 x RJ-45, 10/100/1000 Base-T(X)
COM Ports
Ports 1 x RS-232(Console,Debug)
1 x RS-232
2 x RS-485(2500VDC,Isolated)
USB
Ports 2 x USB 2.0
Power
Input Range +12 VDC ~ +48 VDC
Consumption 9.6 W (0.4 A @ 24 VDC)
Mechanical
Casing Metal
Dimensions (mm) 44 x 164 x 129 (W x L x H)
Installation DIN-Rail
Environment
Operating Temperature -25 ~ +70 °C
Storage Temperature -30 ~ +80 °C
Humidity 10 ~ 90% RH, Non-condensing
GRP-2841M     CR  4G/5G/ Ethernet Gateway (RoHS)
