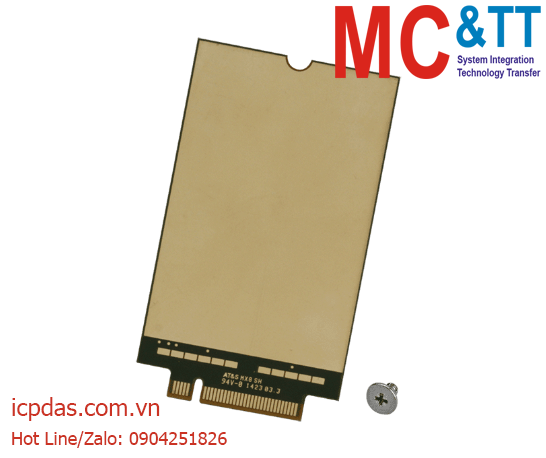

Card M.2 5G/LTE ICP DAS FN990A28 CR

5G/LTE Data Card M.2 module

Tính năng

  • Supports NSA and SA modes
  • Supports EN-DC architecture
  • Supports global 5G and LTE-A tributaries
  • Utilizes 3GPP Release 16 technology
  • Made in Vietnam
Chia sẻ:
Model: FN990A28 CR
Views: 856

The FN990A28 is a 5G module designed with standard M.2 specifications for M2M and IOT applications.
The module adopts 3GPP Release 16 technology, supports 5G NSA and SA modes and EN-DC architecture, and is backward compatible with existing GSM/GPRS networks.

3G System
Data Transmission Rate 42 DL/11 UL Mbps
Frequency Band WCDMA:
B1/B2/B4/B5/B6/B8/B19
4G System
Data Transmission Rate 1.6 Gbps DL / 211 Mbps UL
Frequency Band LTE-FDD:
B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28 /B30/B66/B71
LTE-TDD:
B34/B38/B39/B40/B41/B42/B43 /B48
LTE-SDL:
B29/B32/B46
5G System
Data Transmission Rate 5G NSA: 3.4 Gbps DL / 0.46 Gbps UL
5G SA: 2.5 Gbps DL / 0.90 Gbps UL
Frequency Band n1/n2/n3/n5/n7/n8/n20/n25/n28/n30/n38/n40/n41/n48/n66/n71/n75/n77/n78/n79
SA/NSA default off -n12/n13/n14/n18/n26/n29/n76
Mechanical
Dimensions (mm) 30 × 52 × 2.25 mm
Environment
Operating Temperature -40 °C to +85 °C
Storage Temperature -40 °C to +85 °C
FN990A28     CR  5G/LTE Data Card M.2 module (RoHS)
