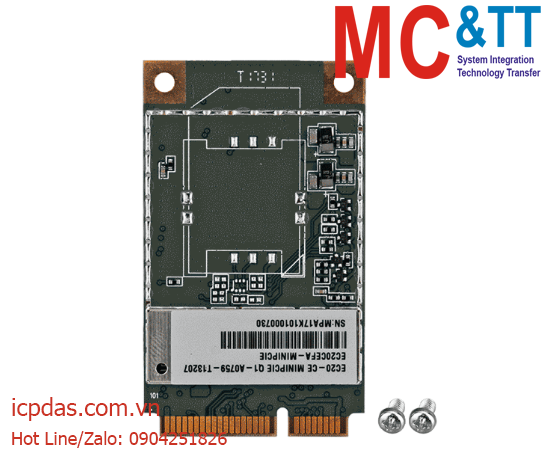

4G IoT LTE Category 4 Module
Tính năng
The EC20-CE is a LTE Cat 4 module optimized specially for M2M and IoT applications. Adopting the 3GPP Rel. 11 LTE technology, and adopting standard PCI Express® Mini Card form factor (Mini PCIe). It delivers 150Mbps downlink and 50Mbps uplink data rates. EC20-CE backward-compatible with existing EDGE and GSM/GPRS networks, ensuring that it can be connected even in remoteareas devoid of 4G or 3G coverage.
| 2G System | |
|---|---|
| Data Transmission Rate | GPRS Downlink transfer: Max. 85.6 kbps; Uplink transfer: Max. 85.6kbps |
| Frequency Band | 900/1800 MHz |
| GPRS Multi-slot | GPRS class 10/8; GPRS station class B |
| Power Class | Class 4 (2 W @ 850/900 MHz) Class 1 (1 W @ 1800/1900 MHz) |
| SMS Format | Sending: UCS2/7bits Receiving: UCS2/7bits |
| 3G System | |
|---|---|
| Data Transmission Rate | DC-HSPA+ Downlink transfer: Max. 42 Mbps; Uplink transfer: Max. 5.76Mbps WCDMA Downlink transfer: Max. 384 Kbps; Uplink transfer: Max. 384 Kbps |
| Frequency Band | WCDMA:900/2100Mhz |
| Power Class | Class 3 (24dBm +1/-3dB) for WCDMA |
| SMS Mode | MT, MO, CB, Text and PDU mode |
| 4G System | |
|---|---|
| Data Transmission Rate | LTE(Cat.4) Downlink transfer: Max. 150 Mbps; Uplink transfer: Max. 50 Mbps |
| Frequency Band | FDD LTE: B1/B3/B8 TDD LTE: B38/B39/B40/B41 |
| 5G System | |
|---|---|
| Data Transmission Rate | |
| Mechanical | |
|---|---|
| Casing | 30.0 x 51.0 x 4.9 (W x L x H) |
| Environment | |
|---|---|
| Operating Temperature | -35°C ~ +75°C |
| Storage Temperature | -40°C ~ +85°C |
| EC20-CE CR | 4G IoT LTE Category 4 Module |
