e-USB404 is an e-Bus x 4 (similar to PCI-E x4) industrial-grad expansion module that supports 4 independent USB 3.1 Gen 1 ( same as USB 3.0) ports. This module needs to be installed on an e-Bus x4 slot of the AXP-9000-IoT Programmable Automation Controller (PAC).
All the USB ports of e-USB404 can be accessed on the panel for easy wiring and including an LED indicator for each port. Each port can provide a standard 700mA regulated 5V output to power USB devices. It also supports software programmable power on/off control for each port to reset the USB device for failure recovery.

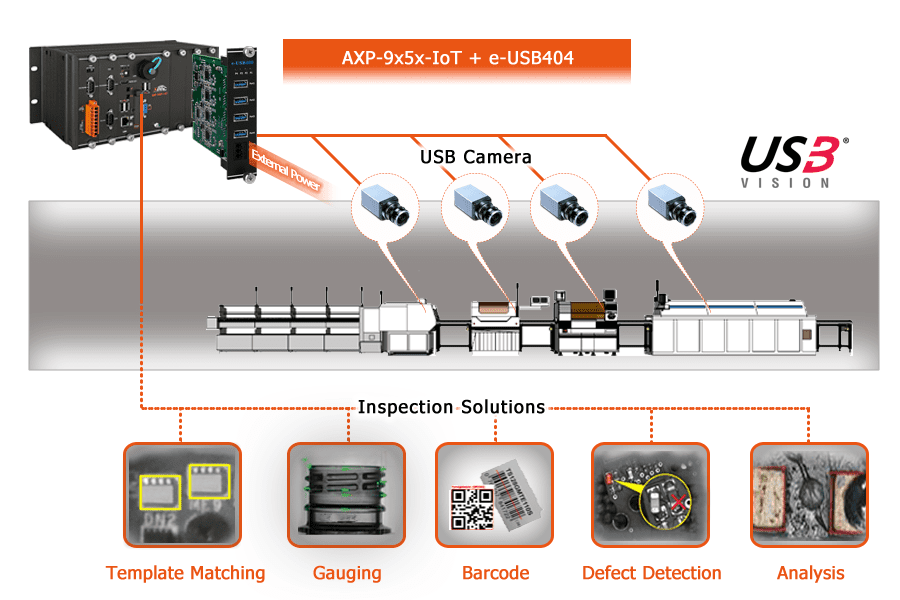

The module supports 4-channel independent USB ports for the connection of 4 USB devices (such as USB Vision camera) operating simultaneously with an independent bandwidth of 5 Gbps. The e-USB404 module is suitable for use as a frame grabber to capture large amount of image data using USB Vision cameras for machine vision, factory automation and medical imaging applications.
