Modul rơ-le đầu vào INPUT tích hợp EMS và cầu chì có thể tháo rời ICP DAS DN-DI-32DW

Termination board for digital input with high EMS protection and removable fuses (RoHS)

Chia sẻ:
Model: DN-DI-32DW
Views: 499

Modul rơ-le đầu vào INPUT tích hợp EMS và cầu chì có thể tháo rời ICP DAS DN-DI-32DW

The DN-DI-32DW is a termination board with EMS protection. It provides sink and source connections for comprehensive applications. Moreover, the DN-DI-32DW supports wet and dry contact to fulfill most applications. In additional, this board also offers each channel one COM pin, the benefit for users is that they need no more additional terminal block for extending COM. Furthermore, the DN-DI-32DW offers removable fuse protection for the field loops with local indication of fuse failure and overvoltage and transient protection.

The DN-DI-32DW is a termination board with EMS protection. It provides sink and source connections for comprehensive applications. Moreover, the DN-DI-32DW supports wet and dry contact to fulfill most applications. In additional, this board also offers each channel one COM pin, the benefit for users is that they need no more additional terminal block for extending COM. Furthermore, the DN-DI-32DW offers removable fuse protection for the field loops with local indication of fuse failure and overvoltage and transient protection.

PIN Assignments

Wiring

Dry contact (Current sourcing)

Dry contact (Current sinking)

Jumper Setting

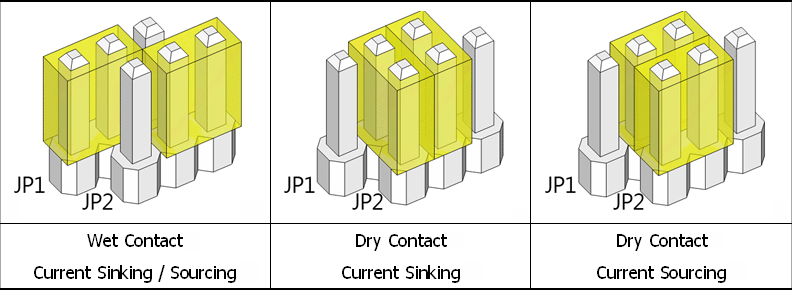

The DN-DI-32DW offers various wire connections to connect with field device to digital input module. It can be switched to different wire connection by changing jumper setting. The detail of jumper settings are described as following table.



DN-DI-32DW CR Termination board for digital input with high EMS protection and removable fuses (RoHS)
