Module CANopen Slave 8 kênh đầu vào số cách ly (DI)+8 kênh đầu ra số cách ly (DO) ICP DAS CAN-2054C CR

CANopen Slave Module of 8-ch Isolated Digital Input and 8-ch Isolated Digital Output

Chia sẻ:
Model: CAN-2054C CR
Views: 943

Module CANopen Slave 8 kênh đầu vào số cách ly (DI)+8 kênh đầu ra số cách ly (DO) ICP DAS CAN-2054C CR

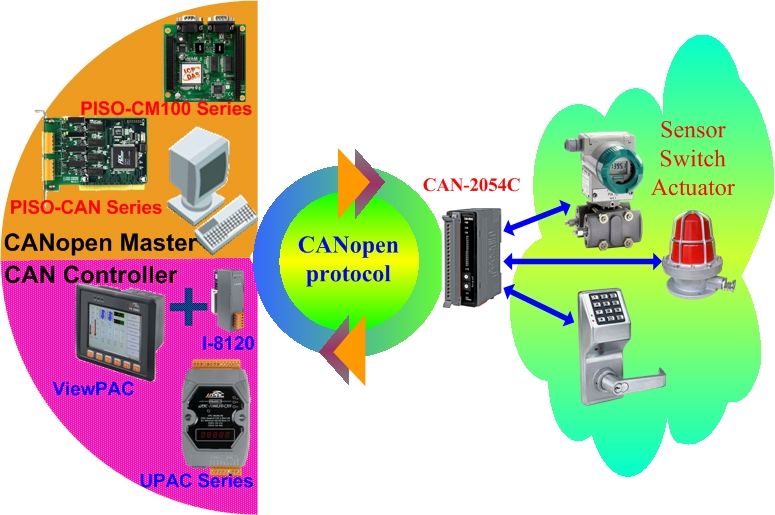

CANopen is one kind of the network protocols based on the CAN bus and mainly used for embedded network of machine control, such as industrial machine control , aircraft engines monitoring, factory automation, medical equipment control, remote data acquisition, environmental monitoring, and packaging machines control, etc. CAN-2054C module follows the CiA DS-301 version 4.02 and DSP-401 version 2.1. You can access the digital I/O status and set the configuration by using standard CANopen protocol. CAN-2054C has passed the validation of the CiA CANopen conformance test tool. Therefore, you can use it with standard CANopen master easily by applying the EDS file. CAN-2054C has isolated sink/source input 8 channel and isolated sink output 8 channel, It can be used to various applications, such as PNP, NPN, TTL, relay contact and so forth. By owing to the CANopen masters of ICP DAS, you can quickly build a CANopen network to approach your requirements.

CPU Module
Watchdog Timer Hardware watchdog
LED Indicators
Status 3 LEDs to PWR, RUN and ERR
Digital Input
Channels 8 (Sink/Source)
Type Wet
ON Voltage Level +3.5 ~ +30 VDC
OFF Voltage Level +1 VDC Max.
Input Impedance 3 kΩ, 0.3 W
Digital Output
Channels 8 (Sink)
Type Open-collector
Load Voltage +5 ~ +30 VDC
Load Current 700 mA per channel
Intra-module Isolation 3750 Vrms
CANopen
Baud Rate 10 k ~ 1 M
Isolation 3000 VDC for DC-to-DC, 2500 Vrms for photo-couple
Terminal Resistor Built-in 120Ω
Protocol CiA 301 v4.02, CiA 401 v2.1
Node ID 1 ~ 99
No. of PDOs 10 RxPDO , 10 TxPDO
PDO Mode Event Triggered, Remotely requested, Cyclic and acyclic SYNC
Error Control Node Guarding protocol or Heartbeat Producer
NMT Slave
EMCY Message Yes
Power
Consumption 1.5 W
Mechanical
Dimensions (mm) 33 x 99 x 78 ( W x L x H )
Installation DIN-Rail
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -30 ~ +80 °C
Humidity 10 ~ 90% RH, Non-condensing
CAN-2054C     CR  CANopen Slave Module of 8-channel Isolated (Wet) DI, 8-channel Isolated (Sink, NPN) DO (RoHS)
