Module CANopen Slave 16 kênh đầu vào số (DI) Sink/Source ICP DAS CAN-2053C CR

CANopen Slave Module of 16-ch Isolated Sink/Source Digital Input

Chia sẻ:
Model: CAN-2053C CR
Views: 732

Module CANopen Slave 16 kênh đầu vào số (DI) Sink/Source ICP DAS CAN-2053C CR

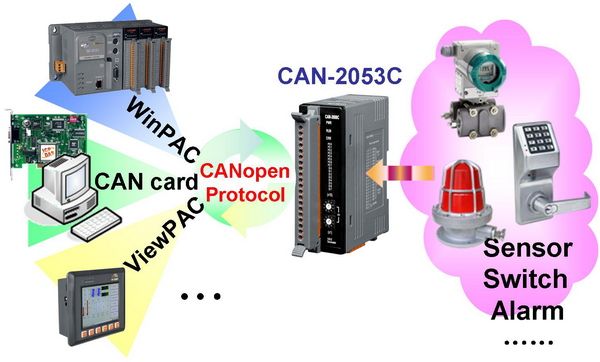

CAN-2053C module follows the DS-301 version 4.02 and DSP-401 version 2.1. You can access the digital input status and set the configuration by using standard CANopen protocol. CAN-2053C has passed the validation of the CiA CANopen Conformance Test tool. Therefore, you can use it with standard CANopen master easily by applying the EDS file. CAN-2053C has 16-channel isolated sink/source input. It can be used to various applications, such as PNP, NPN, TTL, relay contact and so forth. By owing to the CANopen masters of ICP DAS, you can quickly build a CANopen network to approach your requirements.

  • Alarm detector
  • Switch detection
  • I/O pair-connection

CPU Module
Watchdog Timer Hardware watchdog
LED Indicators
Status 3 LEDs to PWR, RUN and ERR
Digital Input
Channels 16 (Sink/Source)
Type Wet
ON Voltage Level +3.5 ~ +30 VDC
OFF Voltage Level +1 VDC Max.
Input Impedance 3 kΩ, 0.3 W
CANopen
Baud Rate 10 k ~ 1 M
Isolation 3000 VDC for DC-to-DC, 2500 Vrms for photo-couple
Terminal Resistor Built-in 120Ω
Protocol CiA 301 v4.02, CiA 401 v2.1
Node ID 1 ~ 99
No. of PDOs 10 RxPDO , 10 TxPDO
PDO Mode Event Triggered, Remotely requested, Cyclic and acyclic SYNC
Error Control Node Guarding protocol / Heartbeat Producer
NMT Slave
EMCY Message Yes
Power
Consumption 1.5 W
Mechanical
Dimensions (mm) 33 x 99 x 78 ( W x L x H )
Installation DIN-Rail
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -30 ~ +80 °C
Humidity 10 ~ 90% RH, Non-condensing
CAN-2053C     CR  CANopen Slave Module of 16-channel Isolated (Wet) DI (RoHS)
