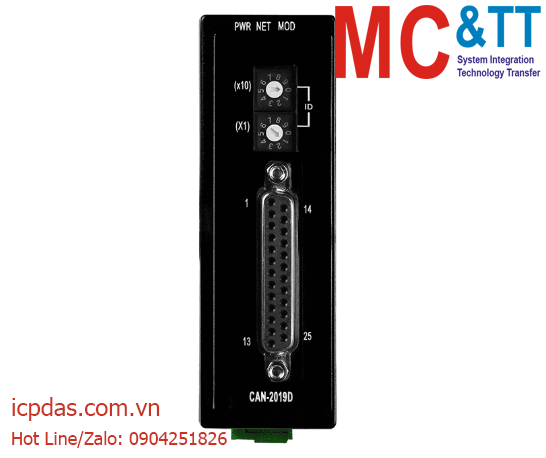

Module DeviceNet Slave 10 kênh đầu vào tương tự ICP DAS CAN-2019D/S CR

DeviceNet Slave Module of 10-channel Universal AI

Tính năng

  • 10-channel, 16-bit resolution thermocouple input DeviceNet slave general-purpose I/O device
  • Comply with DeviceNet specification Volume I, Release 2.0 & Volume II, Release 2.0, Errata 5
  • Group 2 Only Server (non UCMM-capable)
  • Connection supported:
    • 1 connection for Explicit Messaging
    • 1 connection for Polled I/O
    • 1 connection for Bit-Strobe I/O connection
  • • Support DeviceNet Heartbeat and Shutdown message
  • • Set the DeviceNet device station number and baud rate through the rotary switch
  • • Provide EDS file for DeviceNet master interface
  • • LED indicators for power and DeviceNet status
Chia sẻ:
Model: CAN-2019D/S CR
Views: 773

DeviceNet is one kind of the network protocols based on the CAN bus and mainly used for the embedded network of the machine control, such as industrial machine control , aircraft engines monitoring, factory automation, medical equipments control, remote data acquisition, environmental monitoring, and packaging machines control, etc. The CAN-2019D/S follows DeviceNet specification Volume I/II, Release 2.0. User can access the thermocouple input status and set the configuration via DeviceNet EDS file. CAN-2019D/S has 10-channel thermocouple input and it can be used to various applications. By the DeviceNet masters of ICP DAS, you can quickly build a DeviceNet network to approach your requirements. For more information about the DeviceNet master interfaces and other DeviceNet products, please refer to the following web site.

LED Indicators
Status 1 x Power
2 x DeviceNet status
Analog Input
Channels 10 (Differential)
Sensor Type +/- 15mV, +/- 50mV, +/- 100mV, +/- 500mV, +/- 1V, +/- 2.5V, +/- 5V, +/- 10V
+/-20mA,(Requires Optional External 125 Ohm Resistor)
Thermocouple (J, K, T, E, R, S, B, N, C)
Resolution 16-bit
Accuracy +/-0.1% FSR
Sampling Rate 10 Samples/Sec. (Total)
Input Impedance >400 kΩ
Common Mode Rejection 86 dB Min.
Normal Mode Rejection 100 dB
Overvoltage Protection 240 Vrms
Individual Channel Configuration Yes
Open Wire Detection Yes
Zero Drift +/- 10 μV/ °C
Span Drift +/-25 ppm/ °C
Intra-module Isolation 3000 VDC
DeviceNet
Ports 1
Connection Supported 1 connection for Explicit Messaging
1 connection for Polled I/O
1 connection for Bit-Strobe I/O
Baud Rate 125 kbps, 250 kbps, 500 kbps
Terminal Resistor Switch for 120 Ω terminal resistor
Specification Volume I, Release 2.0 & Volume II, Release 2.0, Errata5
Node ID 0 ~ 63
Shutdown Message Yes
Heartbeat Message Yes
Subscribe Group 2 Only Server
Power
Input Range +10 VDC ~ +30 VDC
Consumption 1.5 W
Mechanical
Dimensions (mm) 33 x 99 x 78 ( W x L x H )
Installation DIN-Rail
Environment
Operating Temperature -25 ~ +75 ℃
Storage Temperature -30 ~ +80 ℃
Humidity 10 ~ 90% RH, Non-condensing
CAN-2019D/S     CR  DeviceNet Slave Module of 10-channel Universal AI (RoHS)
